Simple structural analysis
We handle all simulations with CAE services
This free online simulation offers a simple static FEA experience.

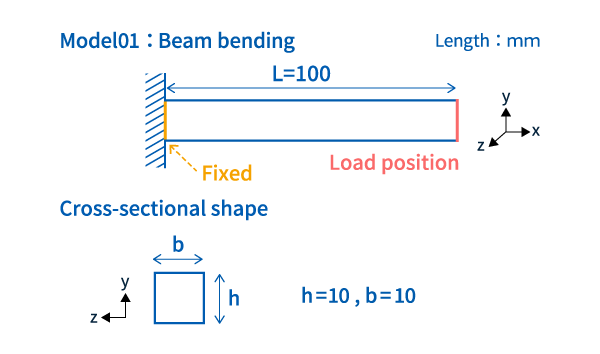

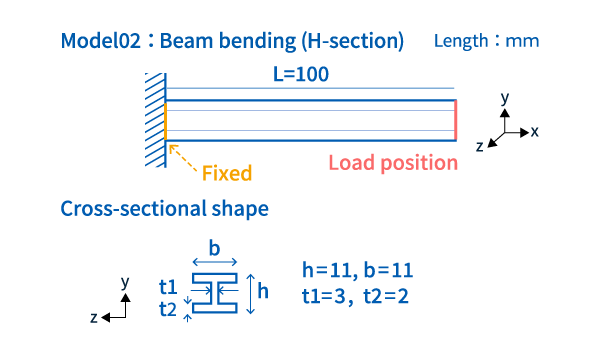

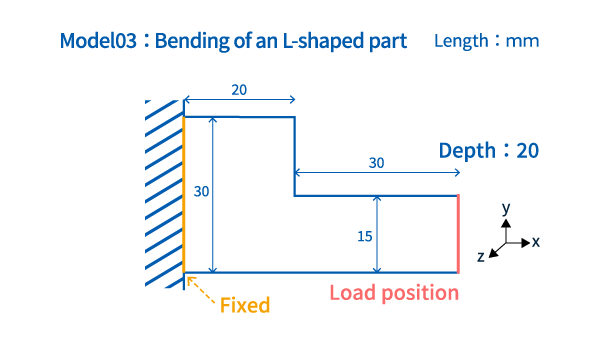

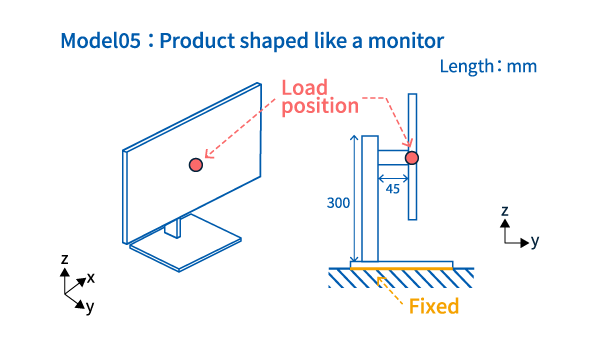

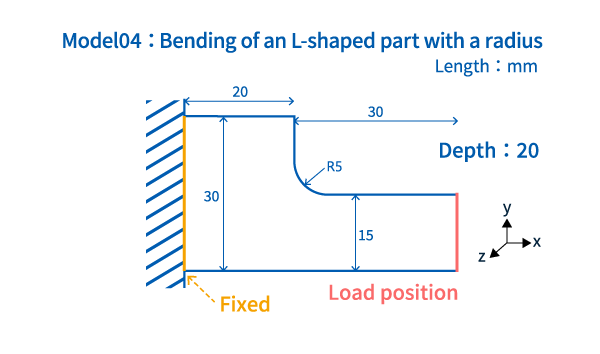

You can specify the physical properties and loads for a pre-prepared simplified shape, and calculate and check the deformation (Mises stress, maximum principal stress, displacement) on the browser.
The analysis is performed under the assumption of elastic objects and geometric nonlinearity. Please read the disclaimer before using this software.
*If you require a more detailed structural analysis, please contact us.
You can check how to operate it in this video.
*If the video quality is poor, change the quality setting to "1080pHD" in the settings at the bottom right of the video.
Results
Mises stress [MPa]: Used for comparison with the yield condition
マウスホイールで拡大縮小
*The results are for reference only. Accuracy is not guaranteed.
