Polyamide Resin LEONA™

What is LEONA™ ?

LEONA™ is a trademark of PA66 resin, manufactured and sold by Asahi Kasei.

LEONA™ PA66 (reinforced) resins is an engineering plastic with excellent heat resistance, strength and rigidity. The LEONA™ family includes a wide range of grades with reinforced technology and alloy technology, and provides the optimum grade according to customer needs or application.

Features of LEONA™

The features of LEONA™ among general-purpose engineering plastics are shown below.

Advantages

1. Excellent heat resistance

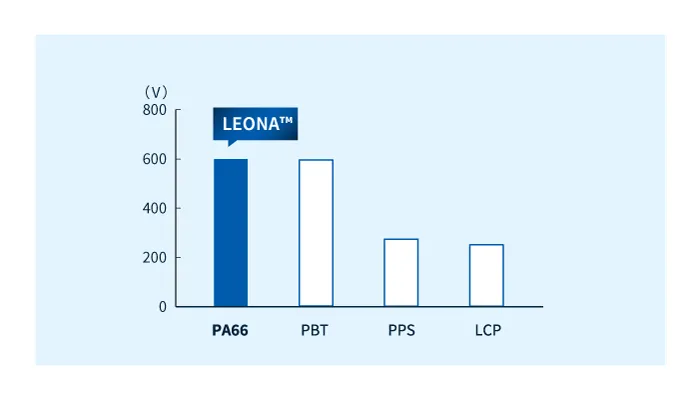

2. Excellent toughness, durability, electrical characteristics, etc., and excellent balance of characteristics
3. Excellent oil resistance

Disadvantages

1. It is necessary to consider the dimensional change during water absorption when designing.
2. Please be careful when using in contact with acidic substances.

Features of glass-fiber reinforced LEONA™ resin

Advantages

1. Excellent strength and rigidity
2. Excellent toughness, durability, electrical characteristics, etc., and excellent balance of characteristics
3. Improved water absorption and better dimensional stability

Disadvantages

1. Glass-fiber reinforced plastics have general drawbacks such as anisotropy, weld strength, and screw wear during molding

Production for LEONA™

LEONA™ is manufactured in an integrated manner from raw materials to products using proprietary technology.

LEONA™ Application cases

End plate

Component parts for battery module

Products

LEONA™

Grades

SN series; SN11B and etc.
GF reinforced, non-halogenated flame retardancy, V-0

Features

・Moldability
・Laser printability
・Strength
・Toughness
・Electrical characteristics (CTI)
・Heat resistance

Cylinder head cover

Privent oil splash from engine

Products

LEONA™

Grades

14G33
Excellent moldability/secondary workability and mechanical property

Features

40% lighter compared with aluminum

Engine mount bracket

Braket of the anti-vibration device attaching to the engine unit

Products

LEONA™

Grades

14G50

Features

・Heat resistance
・High strength / high stiffness
・Fatigue resistance

Chain guide shoe

Support shoe parts for automobile engine timing chains

Products

LEONA™

Grades

1442/1542
By optimally dispersing lubricant, excellent low friction and wear resistance together with mechanical properties and moldability of general PA66 resin.

Features

・Low friction, low wear
・High heat resistance
・standard and high molecular weight grade available

Timing chain case

Keep chain clean by preventing from water/dust.

Products

LEONA™

Grades

SV104
The special polymer design of LEONA™ SV series enhances the damping effect of vibration and sound compared to general PA66. Blending glass fiber can improve its strength and rigidity higher.

Features

・High attenuation performance
・High strength
・High heat resistance

Water / oil pump

Oil pumps for engines, brakes, etc.
Cooling pumps for batteries, and etc.

Products

LEONA™

Grades

BG230

Features

・Uses plant-derived materials
・Low water absorption
・Laser welding

Water pipe

Engine cooling water circulation pipe

Products

LEONA™

Grades

53G33
・Low water absorption, GF33% reinforced grade
・Low water absorption provides excellent hydrolysis resistance and calcium chloride resistance

Features

・Heat resistance
・Hydrolysis resistance
・Calcium chloride resistance
・Moldability (molding of bent pipe)

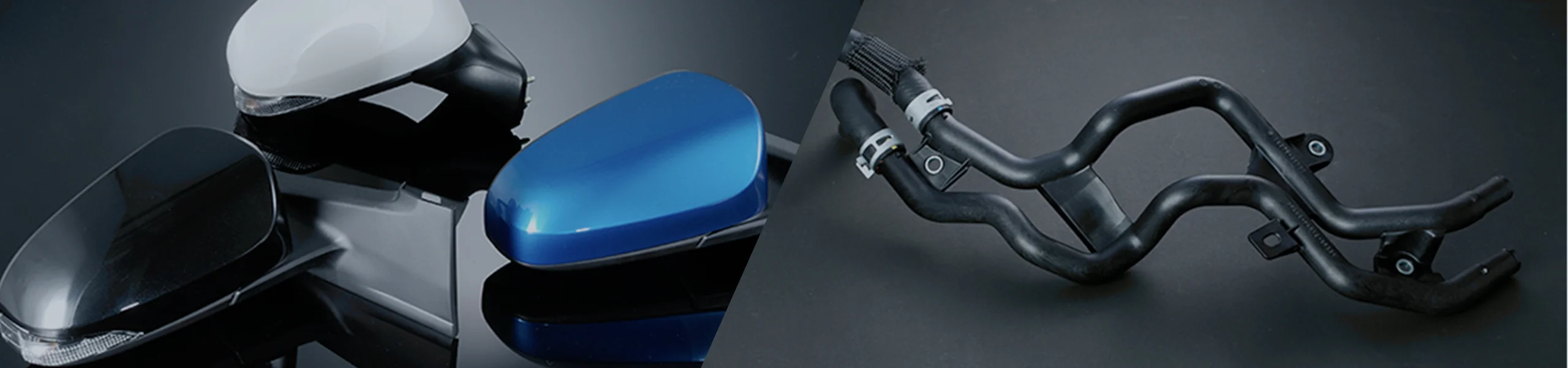

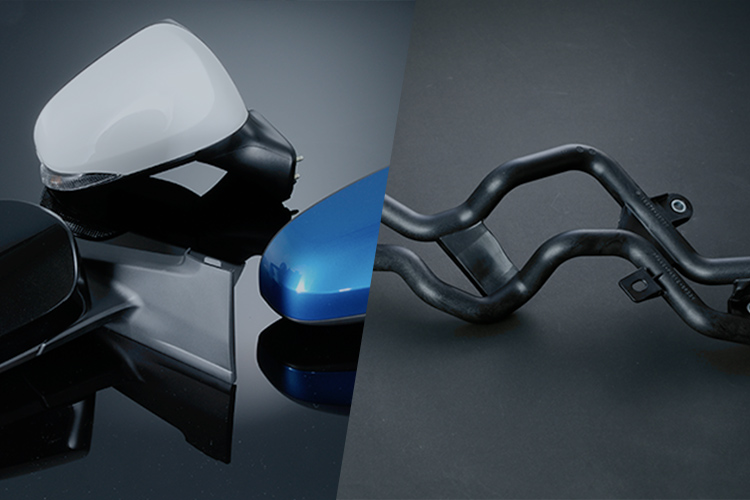

Door mirror base

Highly estetic and stiffer door mirror base to check sides and rear view.

Products

LEONA™

Grades

91G60, 90G33
Excellent balance of high stiffness, good appearance, weatherability, and easy moldability.

Features

・Good appearance
・Weatherability
・High stiffness
・Easy moldability

Rear view mirror bracket

Bracket holding the mirror to check the rear view

Products

LEONA™

Grades

SG104、SG105
High stiffness, good appearance, and easy moldability

Features

・Vibration reduction due to high stiffness
・Appearance as an interior part

Smart key housing

Key housing allows you to unlock and lock vehicle and turn the engine on and off while keeping it in your pocket or bag

Products

LEONA™

Grades

90G33
combines high rigidity, good appearance, weather resistance, and easy moldability.

Features

・Good appearance
・Weatherability
・Easy moldability

Magnet switch

A switch that opens and closes electrical contacts using an electromagnet

Products

LEONA™

Grades

・SN series, FG series: Glass fiber reinforced, UL94: V-0
・SN series: GF reinforced non-halogenated flame retardancy
・FG series: GF reinforced flame retardancy

Features

・Excellent laser printability
・Moldability
・Wear resistance
・Excellent electrical characteristics (CTI)
・Snap fit stability

Connector

For wiring electrical and electronic components

Products

LEONA™

Grades

SN series
FR series
FG series
・ SN series: GF reinforced non-halogenated flame retardancy
・ FR series: non reinforced flame retardancy
・ FG series: GF reinforced non flame retardancy

Features

・Laser printability
・Moldability
・Strength, toughness
・Electrical characteristics (CTI)
・Heat resistance

Motor end cap

Caps of various motors

Products

LEONA™

Grades

1300G
A grade with improved strength and stiffness by addition of glass fiber

Features

・Heat resistance
・Strength/toughness
・Electrical properties
・Moldability

Smartphone chassis

Smartphone internal chassis

Products

LEONA™

Grades

SG105
A grade that combines high stiffness, good appearance, and easy molding.

Features

・Good appearance
・High stiffness

Solar cell connector nut

Waterproof / dustproof nut for the moated part of the cable and connector

Products

LEONA™

Grades

FR370
Non-halogenated flame retardancy V-0

Features

・Flame retardancy
・Easy molidability

Tank for warm water toilet seat

Warm water tank for warm water toilet seat

Products

LEONA™

Grades

1300G
A grade with increased strength and stiffness by adding glass fiber

Features

・Vibration welding
・Creep resistance

Water meter case

Meter case to measuring the amount of drinking water used

Products

LEONA™

Grades

90W50 T33G0
It has fatigue resistance and excellent surface smoothness. Also supports drinking water certification standards

Features

・Fatigue resistance
・Good appearance,
・Drinking water certification

Crescent

It acts as a lock to be attached to windows and sashes with metal fittings for fittings.

Products

LEONA™

Grades

90G50 . 91G55
90G50 : A grade characterized by high stiffness, good appearance, and excellent moldability
91G55 : A grade characterized by excellent appearance, and moldability and low warpage

Features

・Good appearance/high designability
・Realized warm touch/texture and functionality with the use of plastic rather than metal.
・Elimination of such problems as shrinkage or warpage by the use of AGI molding

Solenoid valve

Controls the opening and closing of the flow in a pipe that allows fluid and gas to pass through by air pressure, pneumatic pressure, water pressure, etc.

Products

LEONA™

Grades

SH10E
A grade providing high rigidity as well as UL94:V-0 (1.5 mm)

Features

・High stiffness and flame retardancy V-0
・Improved deformation/fracture resistance at bolt tightening
・No annealing required

Gear box / Gear reducer

A speed changer that decelerates the speed obtained by the motor to generate the necessary force

Products

LEONA™

Grades

・Under development(Filler reinforcement)
・Well balanced friction& wear resistance together with High fatigue resistance performance of PA66

Features

・Friction& wear resistance
・High modulus
・Good fatigue resistance
