Contributes to product weight reduction and high precision
Modified PPE Resin

Application proposal
xyron xyron

Application Proposal

Application Cases

 Antenna covers

×

Covers (radomes) for various communication antennas and base materials for MID antennas.
Excellent dielectric properties are required.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2021/03/antenna.jpg

Related articles

Products

443Z, Other grades under development

Features

  • Excellent dielectric properties (low dielectric constant, low dissipation factor)
  • Impact resistance

RF cavity filter

×

A device that allows signals in a specific frequency band to pass through and blocks other frequency signals.
Originally manufactured with metal, low coefficient of linear expansion, heat resistance, and plating properties are required for resinization.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2022/12/Cavity-type-RF-filter.jpg

Related articles

Products

For more information, please contact us.

Features

  • Low coefficient of linear expansion
  • High heat resistance
  • Excellent plating properties

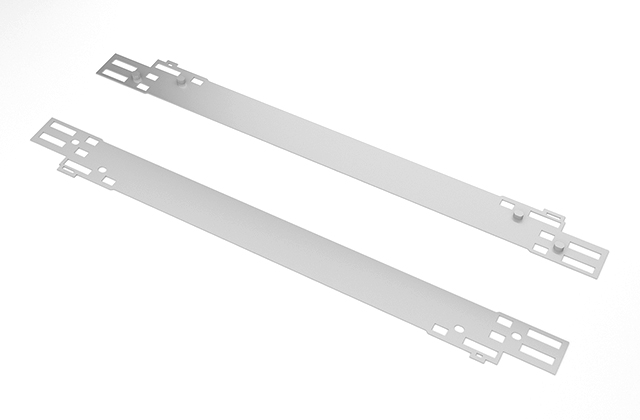

Phase shifter

×

Devices for shifting the phase by utilizing the wavelength-shortening effect of dielectrics.
Requires a balance of dielectric constant and dielectric dissipation factor to match the use.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2022/12/dielectric-phase-machine.jpg

Related articles

Products

For more information, please contact us.

Features

  • Good balance between dielectric constant (Dk) and dissipation Factor (Df)

Junction box for Photovoltaics

×

Boxes for protecting substrates and electrical wiring installed behind solar panels.
Because it is installed outdoors, it is required to have not only flame resistance and electrical characteristics, but also weather resistance and hydrolysis resistance.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2021/03/jb_2.jpg

Related articles

Products

540Z, 644Z

Features

  • Flame resistancy (V-0)
  • Tracking resistance(CTI PLC2 and below)
  • Hydrolysis resistance
  • Acid / alkali resistance
  • Weather resistance (UL 746C f1)

Connecter for Photovoltaics

×

Connectors that connect the cables of solar panels.
Since they are installed outdoors, they are electrical components and require not only flame resistance and electrical characteristics, but also weather resistance and hydrolysis resistance.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2021/03/solarconnector.jpg

Related articles

Products

For more information, please contact us.

Features

  • Flame resistancy (V-0)
  • Tracking resistance(CTI PLC2 and below)
  • Hydrolysis resistance
  • Acid / alkali resistance
  • Weather resistance (UL 746C f1)

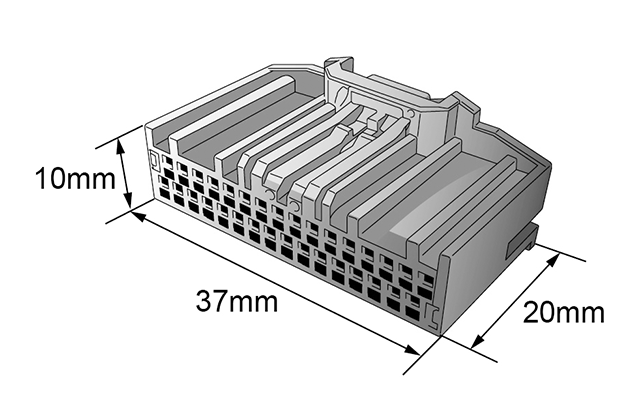

Battery connector

×

Connectors conforming to automotive OEM standards such as LV214, USCAR, etc., which require high reliability.
Quality and standard requirements for long-term outdoor use, and electrical characteristics capable of withstanding high voltages are required.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2023/01/car-battery-connector.png

Related articles

Products

644Z

Features

  • Tracking resistance (CTI PLC 2)
  • Long-term heat resistance (RTI Elec. 125℃)
  • Flame resistance (V-0, 5VA)
  • Weather resistance (UL 746C f1)

Inter-cell spacer

×

An insulating component that separates the cells of an EV battery.
Thin walls, light weight, flame resistance, etc. are required.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2022/12/cellspacer.jpg

Related articles

Products

TF701, 340Z

Features

  • Flame resistance (V-0, non-halogen)
  • Acid / alkali resistance
  • Thin-wall moldability
  • Oil and chemical resistance (TF701)

Fuel cell stack case

×

Peripheral parts of fuel cell stacks.
Low elution is required because excess ions can cause trouble in the transfer of electrons in the fuel cell.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2021/03/fuelcell_2.jpg

Related articles

Products

500H

Features

  • Low elution (ions, oligomers, etc.)
  • Resistance to hot water
  • Acid resistance

In-vehicle camera
(lens barrel, lens spacer)

×

Lens barrels and lens spacers used for various cameras mounted on vehicles.
High dimensional stability is required to accommodate optical components.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2021/03/camera.jpg

Related articles

Products

XP640, DG040

Features

XP640

  • Low water absorption, low dimensional change
  • High heat resistance
  • High strength and rigidity

DG040

  • Dimensional stability
  • Low mechanical strength change under high temperature environment

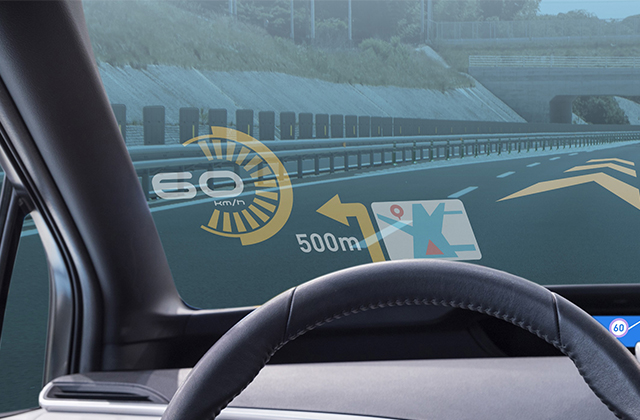

Head-up displays

×

Head-up display components installed in vehicles.
Optical components that require high dimensional stability.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2021/03/heads-up-display.jpg * For illustrative purposes

Related articles

Products

DG040, 744Z

Features

  • Dimensional stability
  • High heat resistance
  • Flame resistance (V-0, non-halogen) (744Z)

Relay block / junction box

×

Junction box or case for relays, fuses, etc.
Since relays and fuses are incorporated, good dimensions and toughness for insertion/removal are required.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2021/03/rb.jpg

Products

A0210, AF700

Features

  • Low water absorption, low dimensional change
  • High strength
  • High toughness
  • Chemical resistance
  • Flame resistance (V-0, non-halogen) (AF700)

Nickel metal hydride battery cell case

×

Case of nickel-metal hydride (NiMH) batteries for automotive use.
It is required to have electrolyte resistance and to not deteriorate even if it comes in contact with electrodes.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2021/11/nimh.jpg

Related articles

Products

For more information, please contact us.

Features

  • Alkali resistance
  • Resistance to metal degradation
  • Gas-barrier properties

Inverter cover

×

Covers to protect inverters in electronic and industrial equipment.
Flame resistance, electrical characteristics, etc. are required.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2021/03/inverter.jpg

Products

240Z, 440Z

Features

  • Flame resistance (V-0, non-halogen)
  • Excellent electrical properties
  • Hydrolysis resistance

Cash dispenser

×

A device built into the inside of an ATM, this conductive mechanical component is used when withdrawing cash.
When banknotes slide and become charged, they stick to each other. The conductive resin removes static electricity and allows accurate counting of banknotes.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2021/03/cash.jpg

Products

X8610

Features

  • Conductive (low volume efficiency 102~103Ω・cm)
  • High strength and rigidity
  • Flame retardancy (V-1)

Water purification parts

×

Cases, caps, valves, and other parts related to water purification systems.
They must be able to withstand water pressure, hot water, etc., and comply with the standards of the country of use.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2021/03/waterfilter.jpg

Related articles

Products

W5000,W5002 (W series)

WG720,WG722,WG731,WG732 (WG series)

Features

  • Resistance to hot water
  • Hydrolysis resistance
  • Vibration fatigue characteristics
  • Acid/alkali resistance
  • Dimensional accuracy, weldability
  • Conforms to drinking water contact materials standards (NSF 61, etc.)

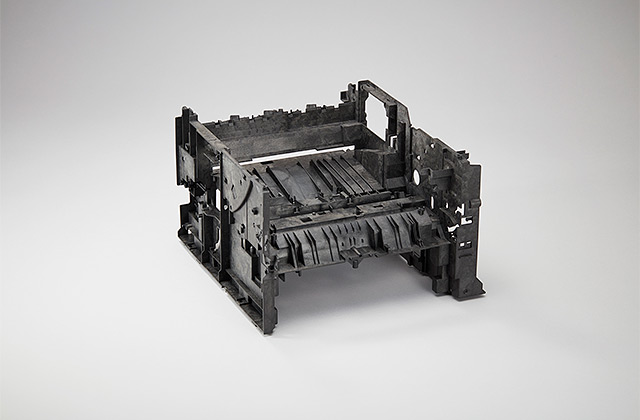

Housing/chassis for printer

×

Chassis and mechanical parts for printers such as laser beam printers (LBP) and inkjet printers (IJP).
High dimensional accuracy, flame retardancy, and heat resistance are required.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2021/07/xyron_thum.jpg

Related articles

Products

X7744,X444V,X523V,X364V (PS alloy)

DG040,DG235,DG141 (PPS alloy)

Features

PS alloys

  • Low warpage and high dimensional accuracy
  • Low specific gravity
  • High stiffness
  • Non-halogenated flame retardancy
  • A wide range of heat resistance temperatures can be designed

PPS alloys

  • Chemical resistance
  • Low warpage and high dimensional accuracy
  • High heat resistance
  • Good fluid properties
  • High stiffness

Fan impellers for high speed motor

×

Fans are used to cool servers, PCs, and other equipment.
Low specific gravity and high strength are required to prevent shape change even when rotating at high speeds.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2021/03/hspeedfan.jpg

Products

G793Z, G702V, G601Z

Features

  • Lightweight (low specific gravity)
  • Low water absorption, low dimensional change
  • High heat resistance, high strength

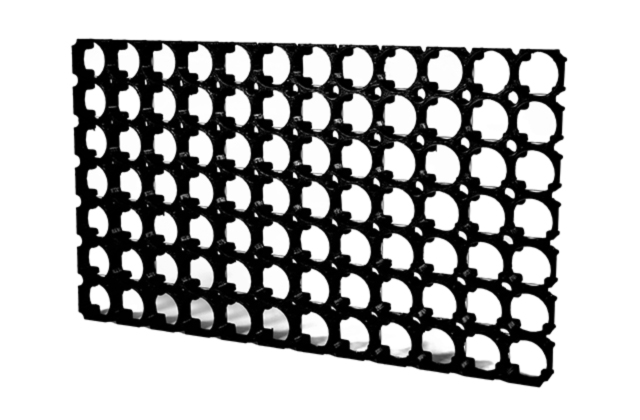

Battery cell holder

×

A holding part that houses the cylindrical cell of an EV battery.
Light weight, flame resistance, and heat resistance are required.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2023/08/battery-cell-holder.jpg

Related articles

Products

340Z, 540Z

Features

  • Flame resistance (V-0, non-halogen)
  • Low specific gravity (weight reduction through reduced material usage)
  • Heat resistance (RTI Elec. 110℃)
  • Hydrolysis resistance
  • Acid / alkali resistance

Bus bar cover

×

An insulated protective cover for the conductor through which high voltage and large current of an EV battery flows.
In addition to requiring electrical tracking ability, flame resistance and heat resistance are also required.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2022/12/busbar-cover.jpg

Related articles

Products

SN11B

440Z, 443Z

Features

LEONA™ SN11B

  • High strength
  • Long-term heat resistance (RTI Elec. 130°C)
  • Flame resistance (V-0, non-halogen)
  • Tracking resistance (CTI PLC 0, 600V)

XYRON™

  • Dimensional stability
  • Low specific gravity (weight reduction through reduced material usage)
  • Flame resistance (V-0, non-halogen)
  • Tracking resistance

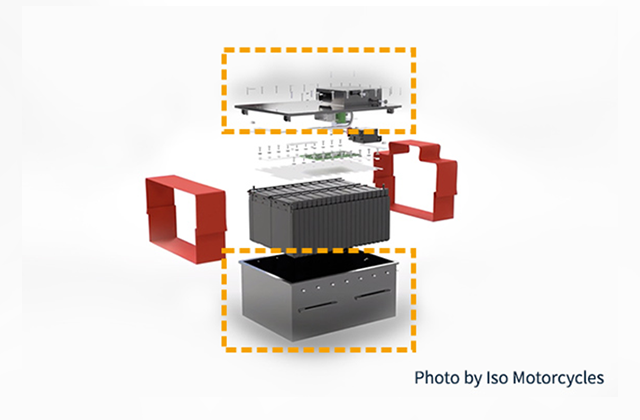

EV battery enclosures

×

Housing for EV battery.
It must be resistant to external shocks and dimensionally stable since it is a large component.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2023/11/LIB-cover.png

Related articles

Products

443Z

Features

  • Impact resistance
  • Dimensional stability
  • Low specific gravity (weight reduction through reduced material usage)
  • Flame resistance (V-0, non-halogen)
  • Electrolyte resistance
  • Electrical insulation

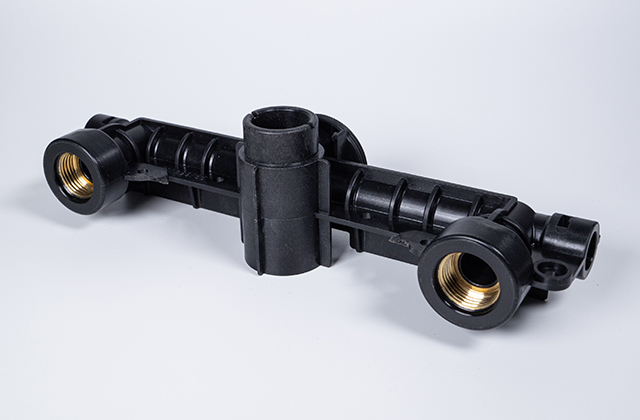

Water mixing tap

×

Internal parts of equipment such as faucets and showers that mix hot and cold water to supply water of appropriate temperature.
They must be able to withstand water pressure, hot water, various chemicals, etc., and comply with the standards of the country in which they are used.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2023/11/hot-water-mixer-tap.jpg

Related articles

Products

SG105

Features

XYRON™ (WG series)

  • Conforms to drinking water contact materials standards (NSF 61, etc.)
  • Resistance to hot water
  • Hydrolysis resistance
  • Vibration fatigue characteristics
  • Acid/alkali resistance

LEONA™ (SG105)

  • High strength and rigidity when absorbing water
  • Excellent surface appearance

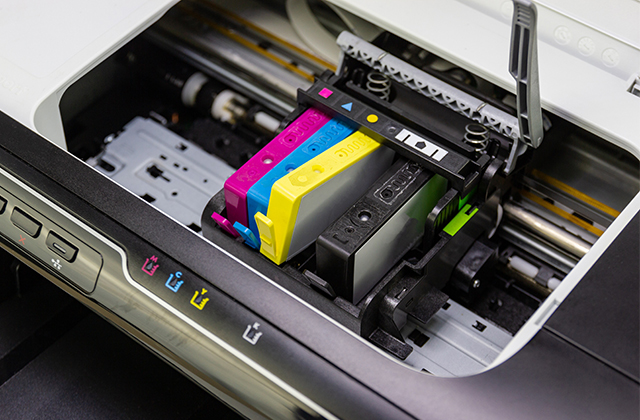

Transparent parts for printer

×

Transparent mechanical parts of printers such as laser beam printers (LBP) and inkjet printers (IJP).
Visibility and laser weldability are required.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2023/11/printer-transparent-parts.jpg * For illustrative purposes

Related articles

Products

CN51V

Features

  • Transmits 940nm infrared light
  • Laser weldable when used with other grades of XYRON™ black colorants

Covers

×

Covers for mechanical parts of printers such as laser beam printers (LBP) and inkjet printers (IJP).
Silence is required to reduce noise generated from mechanical parts.

https://www.asahi-kasei-plastics.com/wp-content/uploads/2023/11/printer-covers.jpg

Products

VT31V, VT31Z

Features

  • High loss factor, high attenuation
  • Realization of noise reduction design by vibration damping
  • Flame retardant

Related News

Product Data/Tips for Use *Handling Precautions

Precautions when handling XYRON™ (modified polyphenylene ether resin)

<Caution>
The content of this document is based on currently available materials, information and data, and may be revised based on new findings. In addition, since the precautions are intended for normal handling, in the case of special handling, please use after implementing safety measures suitable for the application and usage.

1. Handling Precautions

The following are important points for handling XYRON™. Please use it for safe handling of XYRON™. A separate safety data sheet has been created for handling precautions for each grade of XYRON™. Please read the safety data sheet before use. Please investigate the safety of the additives your company uses other than XYRON™.

A. Notes on work
When working with XYRON™, be careful to avoid contact with or inhalation of pellets, molten resin, and gases generated during melting. In the unlikely event of contact or inhalation, first aid measures are listed below.

  • ・If it gets into your eyes
    If it gets in your eyes, rubbing it may cause irritation or damage the cornea, so wash thoroughly with clean water for at least 15 minutes without rubbing, and if there are any abnormalities, seek medical attention.
  • ・If it adheres to the skin
    In general, wash with water or soap, and if molten material adheres, immediately cool with clean water. Do not forcibly peel off the hardened resin on the skin, and seek medical attention.
  • ・If inhaled
    Normally, there is no direct effect on the human body, but if you inhale dust, etc., gargle well with clean water. If breathing fumes from the melt makes you sick, move to fresh air and wait for recovery. If it does not recover, get medical attention.
  • ・If swallowed
    Spit it out as much as possible, and if there are any abnormalities, seek medical attention.

B. Safety and health precautions
Please be careful to avoid contact with eyes or skin or inhalation of the gas generated when XYRON™ dries or melts. Also, avoid touching the hot resin directly. During drying and melting operations, it is necessary to install a local exhaust system and wear protective equipment (safety glasses, protective gloves, etc.).

  • ・Equipment measures
    In the molding work, there is a risk that gas may be generated by heating and melting, so please install an effective local exhaust system etc.
  • ・Respiratory protective equipment
    Wear a mask for organic gas when working in a place where there is a possibility of inhaling generated gas or fume. Wear a dust mask when working with resin products, sanding, or other work that generates dust.
  • ・Protective glasses
    When working, wear resin safety glasses with side seals, resin goggles, etc.
  • ・Protective gloves
    Wear as needed. In particular, when handling molten resin, use gloves with good heat insulation to prevent burns.
  • ・Protective clothing
    Regular work clothes are fine, but especially when handling molten resin, wear long-sleeved clothing to prevent burns.
  • C. Precautions regarding combustion
    XYRON™ is flammable and should be handled, transported, and stored away from heat and ignition sources. In the event of a fire, strong heat, black smoke, carbon dioxide gas, carbon monoxide gas, and other toxic gases may be generated. To extinguish the fire, you can use the same extinguishing agents as for general fires, such as water, fire extinguishing foam, and powder extinguishing agent. Wear fire retardant clothing and breathing equipment when extinguishing a fire.

    D. Precautions for transportation
    Avoid getting wet and rough handling to prevent the packing bag from tearing. In the unlikely event that the bag is broken and the pellets are scattered, take special care not to slip and fall, and quickly sweep up and collect or dispose of them. Take measures to prevent static electricity disasters during pneumatic transportation.

    E. Precautions for storage
    Please store XYRON™ away from direct sunlight and places with high temperature and humidity. Store it away from heat and ignition sources, and take measures to prevent static electricity hazards.

    F. Disposal precautions
    XYRON™ can be disposed of by landfill or incineration. When disposing of waste in a landfill, please entrust the disposal to a certified industrial waste disposal company or a local government if that organization is doing so, in accordance with the "Waste Disposal and Public Cleansing Act." When incinerating, please use incineration equipment and process in accordance with various laws and regulations such as the Air Pollution Control Act.

    2.Regarding conforming standards

    There are grades XYRON™ that comply with the self-regulatory standards for food containers and packaging made of polyolefin and other synthetic resins, Ministry of Health and Welfare Notification No. 370, UL, CSA, and Electricity Control Law. Please contact our office for details.

    3.Others

    Please be aware of industrial property rights when using this product.

    The data in the catalog are representative values obtained based on prescribed test methods, and are not guaranteed values. Please refer to it as a guideline for selecting the most suitable grade for each application. These figures are subject to change for improvement of physical properties.

Please contact us to ask any questions, discuss any concerns, and request samples.

Enter PPE Description
