Connector for automotive battery
Connectors that meet automotive OEM standards that require high reliability, such as LV214, USCAR
Products XYRON™
- TOP
- Applications
- Automotive and motorcycles
Automotive
Connector for automotive battery
Connectors that meet automotive OEM standards that require high reliability, such as LV214, USCAR
Products
Grades
Features
- Flammability (UL 94 V-0, 5VA)
- Long-term reliability (UL 746B RTI 125℃)
- Tracking resistance (CTI PLC 2)
- Outdoor suitability (UL 746C f1)
Inter-cell spacer
Insulator between battery cells.
Products XYRON™
Inter-cell spacer
Insulator between battery cells.
Products
Grades
T series and 340Z
・Tracking resistance
・Hydrolysis resistance
・Acid and alkaline resistance
・Stable long-term physical properties
Features
・A material with a high degree of freedom in design suitable for the housing.
・A low specific gravity material with excellent creep characteristic, non-halogenated flame retardancy, and dimensional stability.
・Excellent thin-wall moldability, contributing to space saving and weight reduction.

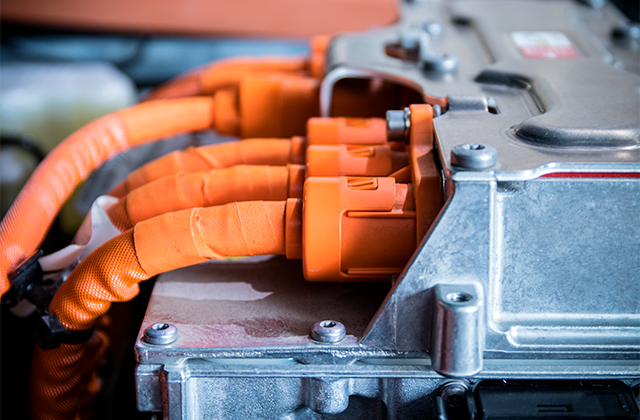

Bus bar cover
Cover of conductor through which high voltage and large current flows.
Products XYRON™
Bus bar cover
Cover of conductor through which high voltage and large current flows.
Products
Grades
TF701, TA720, X9110
Features
・Thin-wall moldability, insulation, and heat resistance.
・Some grades have oil resistance. Easy to handle.
Bus bar cover
Cover of conductor through which high voltage and large current flows.
Products LEONA™
Bus bar cover
Cover of conductor through which high voltage and large current flows.
Products
Grades
SN11B
Features
- Thin wall moldability, Excellent dielectric breakdown strength, Tracking resistance (CTI 600V), Flammability (UL94 V-0), RTI (Relative Thermal Index)
- Can be colored orange

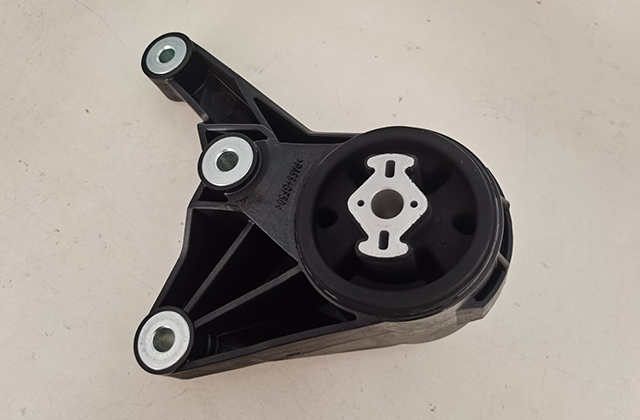

Motor mount bracket for EV
Bracket for mounting anti-vibration components attached to EV motor
Products LEONA™
Motor mount bracket for EV
Bracket for mounting anti-vibration components attached to EV motor
Products
Grades
Features
- High strenght, high rigidity
- High heat resistance
- Fatigue resistance
- Design support with CAE (Computer Aided Engineering)

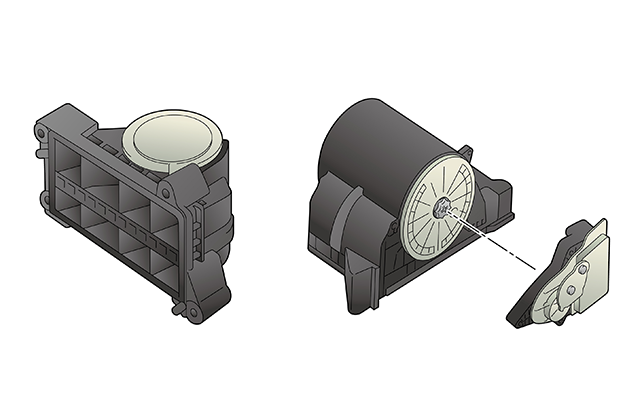

Coolant valve
Valve which controls the coolant flow for thermal management in liquid-cooling battery EV
Products LEONA™
Coolant valve
Valve which controls the coolant flow for thermal management in liquid-cooling battery EV
Products
Grades
Features
- High strength
- Resistance to Long-Life Coolants (LLC)
- Laser-welding and laser-marking properties

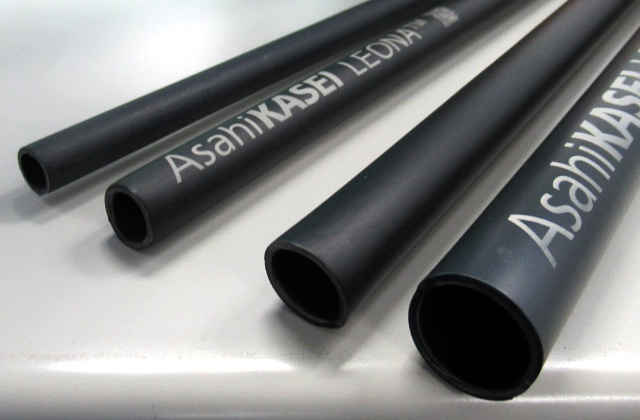

Cooling pipe or tube
Pipe or tube connecting various coolants to each unit for thermal management of battery EV
Products LEONA™
Cooling pipe or tube
Pipe or tube connecting various coolants to each unit for thermal management of battery EV
Products
Grades
Developing grade for extrusion molding
Features
- Resistance to Long-Life Coolants (LLC), chemicals, oils.
- High speed extrusion molding
- Shape flexibility
Battery end plate
Component parts for battery module.
Products LEONA™
Battery end plate
Component parts for battery module.
Products
Grades
SN series; SN11B and etc.
GF reinforced, non-halogenated flame retardancy, V-0
Features
・Moldability
・Laser printability
・Strength, toughness
・Electrical characteristics (CTI)
・Heat resistance
Fuel cell
Components for fuel cells
Products XYRON™
Fuel cell
Components for fuel cells
Products
Grades
500H
・Non-reinforced heat resistant grade
・Low elution performance
・Acid resistance
Features
・Low elution from resin (ions, oligomers, and etc.) to water
which is highly evaluated by customers.
・Excellent hot water resistance and acid resistance, and physical properties hardly deteriorate even when components are immersed for a long period of time.

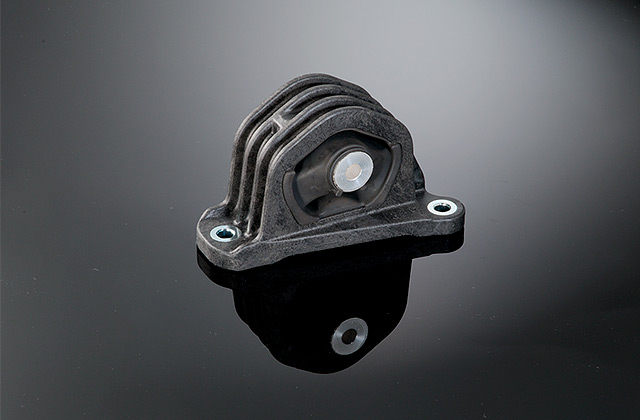

Engine mount bracket
Braket of the anti-vibration device attaching to the engine unit
Products LEONA™
Chain guides
Support shoe parts for automobile engine timing chains
Products LEONA™
Chain guides
Support shoe parts for automobile engine timing chains
Products
Grades
1442/1542
By optimally dispersing lubricant, excellent low friction and wear resistance together with mechanical properties and moldability of general PA66 resin.
Features
・Low friction, low wear
・High heat resistance
・standard and high molecular weight grade available

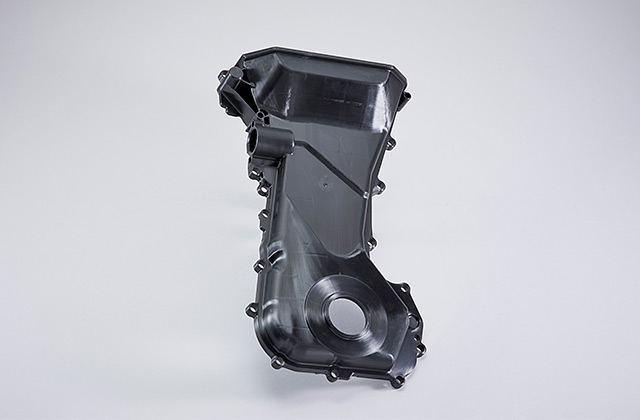

Timing chain case
Keep chain clean by preventing from water/dust.
Products LEONA™
Timing chain case
Keep chain clean by preventing from water/dust.
Products
Grades
SV104
The special polymer design of LEONA™ SV series enhances the damping effect of vibration and sound compared to general PA66. Blending glass fiber can improve its strength and rigidity higher.
Features
・High attenuation performance
・High strength
・High heat resistance

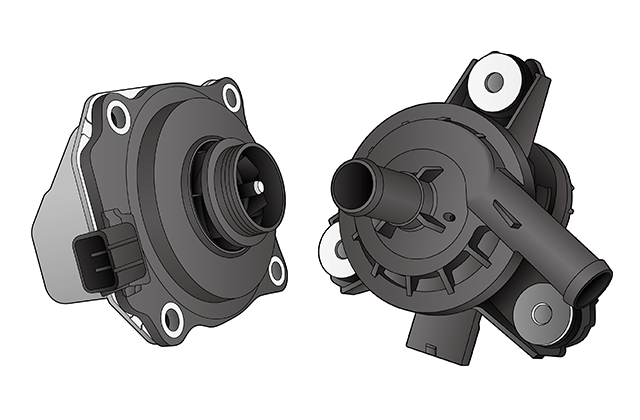

Water / oil pump
Oil pumps for engines, brakes, etc. Cooling pumps for batteries, and etc.
Products LEONA™
Water / oil pump
Oil pumps for engines, brakes, etc.
Cooling pumps for batteries, and etc.
Products
Features
・Uses plant-derived materials
・Low water absorption
・Laser welding
SG104
・吸水時の低寸法変化
・低物性低下
・高い比強度、良外観、優れた流動性
・成形時のガスが少なく、良成形性

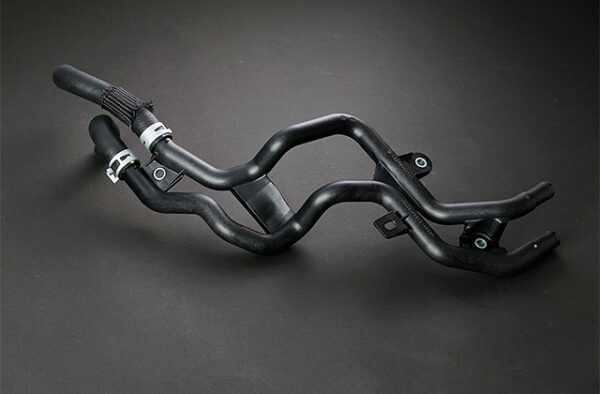

Water pipe
Engine cooling water circulation pipe
Products LEONA™
Water pipe
Engine cooling water circulation pipe
Products
Grades
53G33
・Low water absorption, GF33% reinforced grade
・Low water absorption provides excellent hydrolysis resistance and calcium chloride resistance
Features
・Heat resistance
・Hydrolysis resistance
・Calcium chloride resistance
・Moldability (molding of bent pipe)
Fuel-pump modules
It is a part that is mounted on the fuel tank of a vehicle and has a built-in pump and fuel filter in the lower case, and sends purified fuel from the upper flange to the engine. The main parts are made of POM resin, which has excellent fuel resistance.
Products TENAC™
Fuel-pump modules
It is a part that is mounted on the fuel tank of a vehicle and has a built-in pump and fuel filter in the lower case, and sends purified fuel from the upper flange to the engine.
The main parts are made of POM resin, which has excellent fuel resistance.
Products
Grades
Features
・Excellent fuel resistant property.
・Excellent creep resistance.

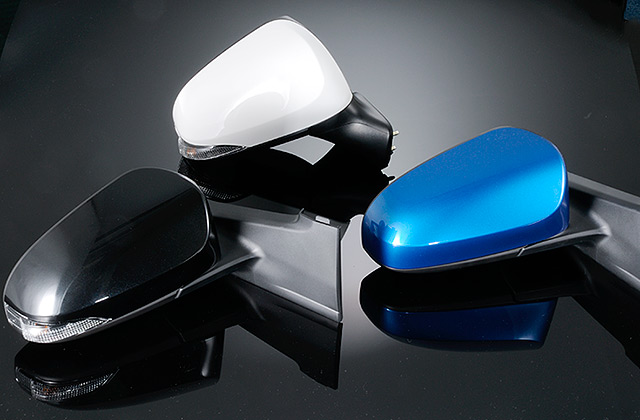

Door mirror base
Highly estetic and stiffer door mirror base to check sides and rear view.
Products LEONA™

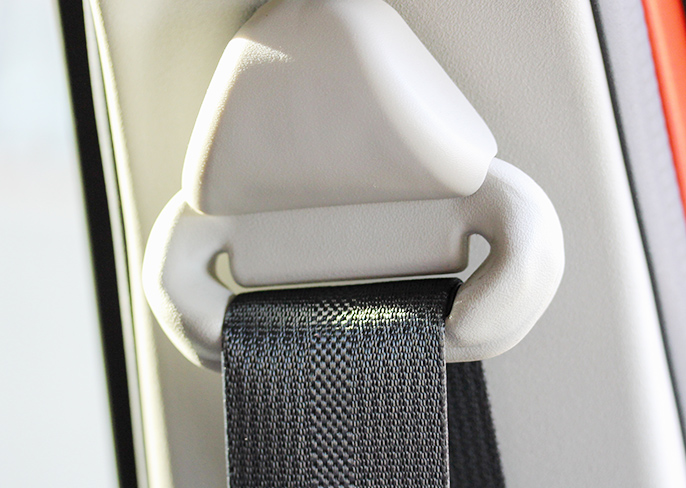

Through anchors
The through anchor is installed on the center pillar, and the metal parts are coverd with POM resin ...
Products TENAC™
Through anchors
The through anchor is installed on the center pillar, and the metal parts are coverd with POM resin to maintain the slidability with the seat belt made from polyester. In addition, high-viscosity UV-resistant homopolymer grade 3013A is used because it is required to have impact resistance in the automobile crash and UV resistance because it is an interior part.
Products
Grades
TENAC™ 3013A：Ultra-high viscosity UV resistant homopolymer grade
Features
・UV resistance
・Excellent imapct strength.

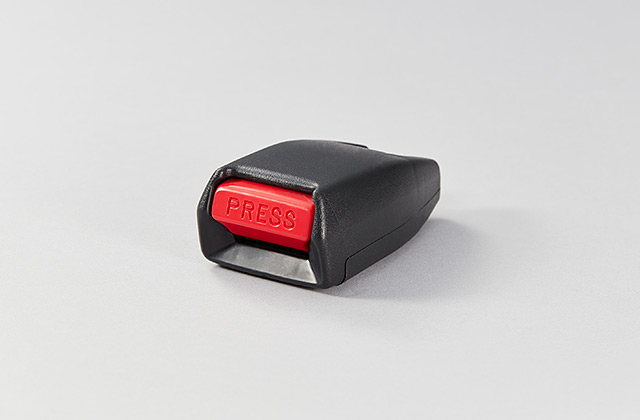

Seat-belt press buttons
・It has the high UV resistance and low formaldehyde emisson properties required for automobile interior...
Products TENAC™
Seat-belt press buttons
・It has the high UV resistance and low formaldehyde emisson properties required for automobile interior parts.
・It has excellent impact strength and is not easily damaged even in an emergency.
Products
Grades
Features
・Industry's highest level of low VOC (volatile organic compound) performance
・UV resistance
・Impact strength

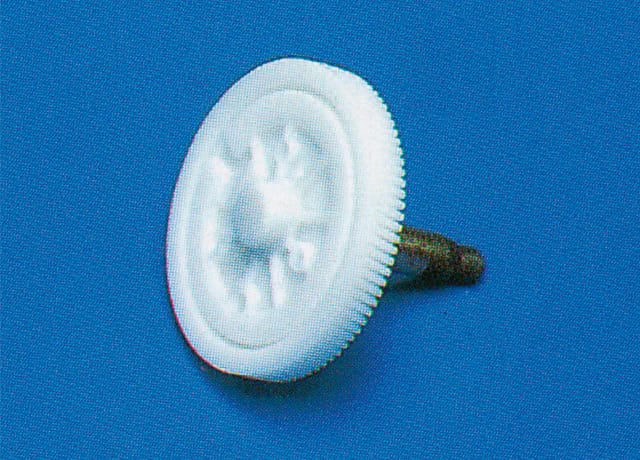

Motor gears
Since the gears used in the motors that window lifters, wipers, seats, etc. are required to have high durability, high-viscosity homopolymers are mainly used.
Products TENAC™
Motor gears
Since the gears used in the motors that window lifters, wipers, seats, etc. are required to have high durability, high-viscosity homopolymers are mainly used.
Products
Grades
TENAC™ MG210 : Ultra-high viscosity and high durability homopolymer grade
Features
・Excellent durability.
・Excellent creep property.
・Weight reduction is possible by replacing metal with POM resin.

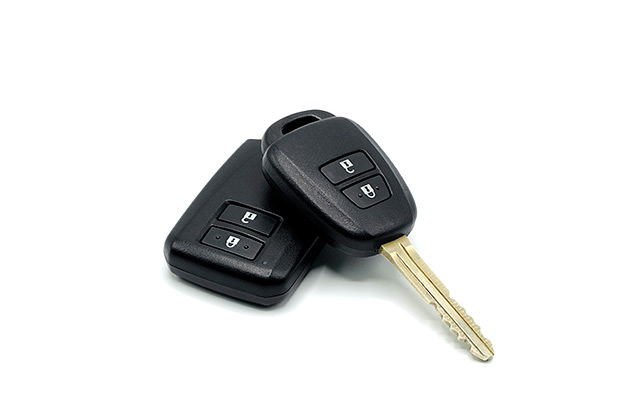

Smart key housing
Key housing allows you to unlock and lock vehicle and turn the engine on and off while keeping it in your pocket or bag
Products LEONA™
Smart key housing
Key housing allows you to unlock and lock vehicle and turn the engine on and off while keeping it in your pocket or bag
Products
Grades
90G33
combines high rigidity, good appearance, weather resistance, and easy moldability.
Features
・Good appearance
・Weatherability
・Easy moldability
In-vehicle camera
(lens barrel, lens spacer)
Lens barrels and lens spacers used in various cameras installed in cars
Products XYRON™
In-vehicle camera
(lens barrel, lens spacer)
Lens barrels and lens spacers used in various cameras installed in cars
Products
Features
・Demonstrate high heat resistance, high strength, and high stiffness performance comparable to high heat resistance PA.
・Suppress the decrease in mechanical strength under high temperature, and reduces anisotropy of dimensional change by blending special glass filler.
・ Contribute to cost reduction of metal components by resinification.
Head-up displays
Head-up display components installed in cars
Products XYRON™
Head-up displays
Head-up display components installed in cars
Products
Features
・By blending PPE with PPS, dimensional stability at high temperatures is improved, and by blending special glass filler, dimensional anisotropy is reduced.
・UL flame retardancy V-0, deflection temperature under load 135 °C, excellent balance of heat resistance, toughness and dimensional stability.

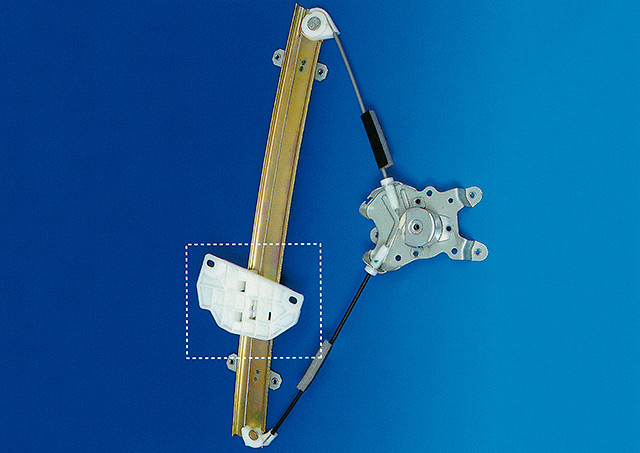

Window regulator
（Carrier plate）
POM is often used for window regulators (wire type), which are elevating devices for window glass, b...
Products TENAC™
Window regulator
（Carrier plate）
POM is often used for window regulators (wire type), which are elevating devices for window glass, because of their excellent slidability and durability. The carrier plate is made from ultra high viscosity homopolymer, which has superior fatigue resistance and high creep resistance,because it supports the window glass and receives a long-term load.
Products
Grades
TENAC™ MG210 : Ultra-high viscosity and high durability homopolymer grade
Features
・Excellent durability
・Superior fatigue resistance, excellent creep property
・Weight reduction is possible by replacing metal with POM resin.
Relay block / junction box (XYRON™)
Storage case for relays, fuses, etc.
Products XYRON™
Relay block / junction box (XYRON™)
Storage case for relays, fuses, etc.
Products
Grades
A0210 (PA / PPE blend): High heat resistance, high toughness, low water absorption low dimensional change (compared to nylon material)
A0230: A0210 equivalent grade, which is using localized raw materials in the ASEAN region .
AF700 (PA / PPE blend): High heat resistance, low water absorption low dimensional change, and UL V-0
Features
・Improve changes in water absorption dimensions while maintaining the excellent heat resistance and toughness of PA.
・Can be used for advanced designs that require toughness due to our materials' strength and high toughness characterestics.
・ UL V-0 grade is also available.
・By producing hexamethylenediamine, which is the raw material for PA, in-house (the only Japanese company), we have achieved stable supply and high quality.
・ By localizing raw materials overseas, we maintain a stable supply and cost globally.

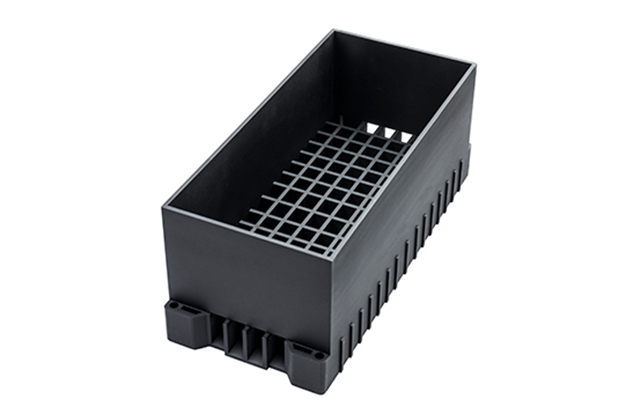

Nickel metal hydride battery cell case
As Asahi Kasei Group Environmental Contribution Products, this product contributes to the reduction of..
Products XYRON™
Nickel metal hydride battery cell case
Connector for automotive battery
As Asahi Kasei Group Environmental Contribution Products, this product contributes to the reduction of CO2 emissions at the stage of use.
Products
Grades
Xyron™ Excellent Lightweight Grade
・Lightweight (low specific gravity)
・Alkaline resistance
・Gas barrier
・Metal degradation resistance
Features
This material was developed to achieve lightweight and the various requirements for battery cell case.
PIM : Powder Injection Molding
PIM is a method of manufacturing small, high-precision metal and ceramic parts by adding a binder to metal or..
Products TENAC™
PIM : Powder Injection Molding
PIM is a method of manufacturing small, high-precision metal and ceramic parts by adding a binder to metal or..
Products
Grades
・Super high flowability grades: Tenac™ FF520, Tenac™ 9520
・We have developed innovative polyacetal resins to utilize as a binder.
・It is available to markets as a Super high flowability grade.
Features
・Excellent extrudability and thermal stability of metal or ceramic powder and binder mixtures (feedstock)
・Excellent feedstock formability
・Excellent strength of feedstock molding
